Description :

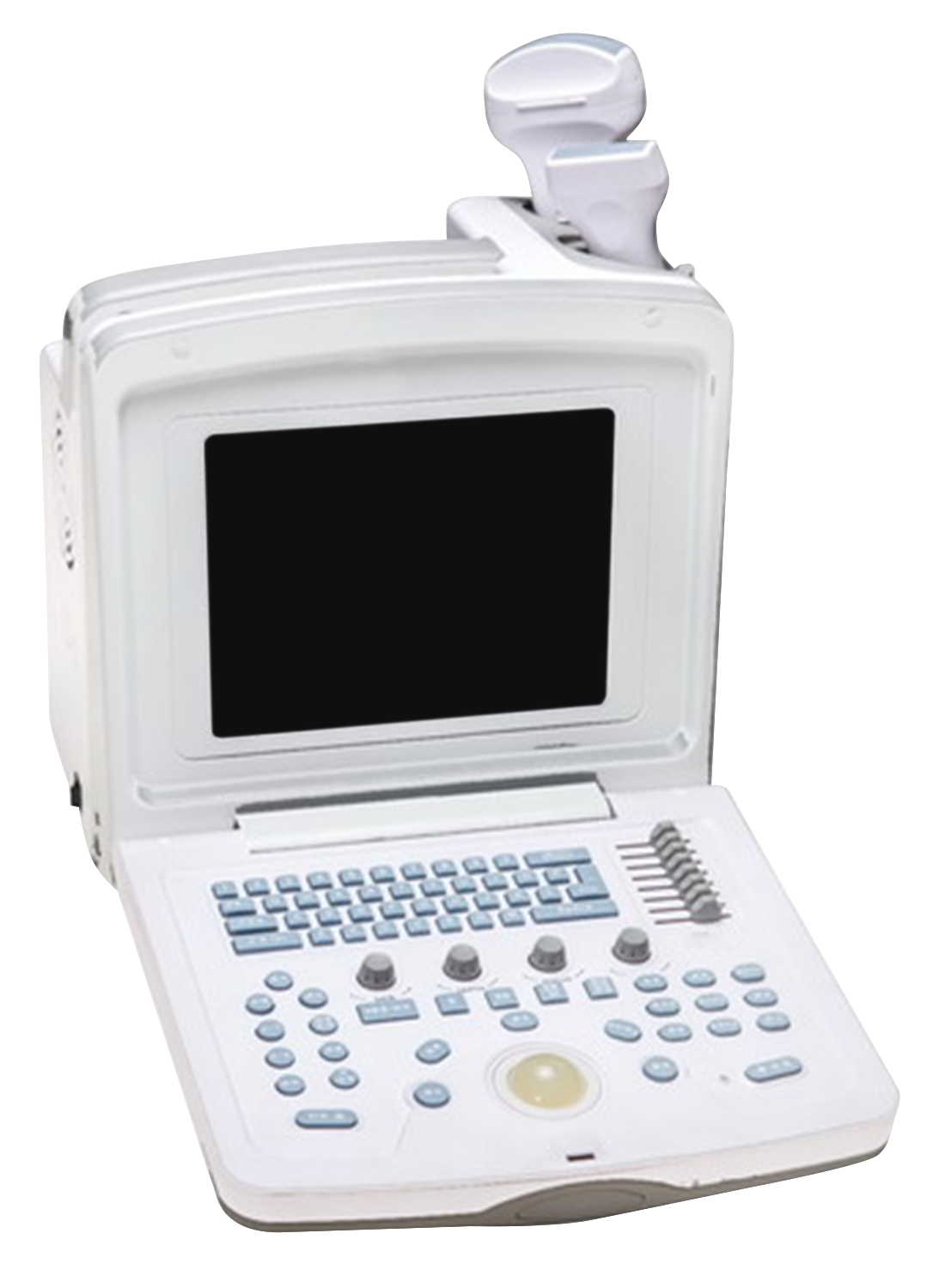

Portable Ultrasound machine KUS-A201 is a compact B/W digital ultrasound imaging modality equipped with 10” LCD screen, 8 pseudo-colour imaging functions and core features including digital beam-forming, ultrasonic frame-forming, real-time dynamic aperture control, advanced frequency scan, dynamic focusing and gamma correction to ensure efficient measuring and spot-analysis of the body area under study.
Specification
| Display Size |
10-inch screen |
| Display Depth |
≥ 250 mm |
| Ultrasound Modes |
B, B+B, B+M, B+2M, M, 4B |
| TGC |
Total gain, 8 segment TGC |
| Depth Adjustability |
16 level of real-time depth adjustments |
| Probe Scan Methods |
Convex, Linear, Micro-convex |
| Pseudo-colour Imaging |
8 pseudo-colour options |
| Cine-loop |
≥ 500 frames |
| Frame Storage |
≥ 64 frames, Supports Disk Storage |
| Body Marks |
40 types |
| Imaging Mode |
2D ultrasound imaging |
| Measurement |
Distance, Circumference, Area and Volume |
| Cardiac Measurement |
LV/VF, AV, MV, PV, TV, HR |
| Obstetric Measurement |
BDP, FL, AC, HC, CRL, AD, GS, G.A, LMP, EDD, FW |
| Image Processing |
Pseudo-color, Dynamic range, THI, Image Smoothing, Image Sharpening, Gamma Correction and Histogram based Enhancement. |
| Output Report |
4 Reporting Media formats |
| Zoom |
4 step zoom-in functionality |
| Output Interface |
PAL-D Video, RS-232, USB 2.0 |
| Dimensions |
460 x 360 x 430 mm |
| Weight |
9 Kgs |
Features
- High resolution vivid colour screen
- Pseudo-colour imaging
- Digital beam-forming technology
- Real-time depth adjustability
- Image management system
- Patient file management and transfer system
Application
Used in examination rooms, consultation clinics, primary healthcare centers and rescue ambulance or outdoor examinations for point of care ultrasonography imaging for symptomatic examination and diagnosis at patient’s bedside.
